JMeter steps

This plugin provides a set of steps for conducting performance testing using JMeter DSL.

Install

Include the module in the corresponding section.

es.iti.wakamiti:jmeter-wakamiti-plugin:1.0.0
<dependency>
  <groupId>es.iti.wakamiti</groupId>
  <artifactId>jmeter-wakamiti-plugin</artifactId>
  <version>1.0.0</version>
</dependency>

Options

jmeter.baseURL

  • Type: URL required

Defines the base URL for REST calls. This setting is equivalent to the Define base URL step if a more descriptive statement is preferred.

Example:

jmeter:
  baseURL: https://example.org/api/v2

jmeter.contentType

  • Type: string
  • Default: APPLICATION_JSON

Specifies the type of content to send in the header of REST calls. Accepted values are:

literal content-type header value
WILDCARD */*
TEXT_PLAIN text/plain
TEXT_XML text/xml
TEXT_HTML text/html
APPLICATION_JSON application/json
APPLICATION_XML application/xml
APPLICATION_XHTML_XML application/xhtml+xml
APPLICATION_SVG_XML application/svg+xml
APPLICATION_SOAP_XML application/soap+xml
APPLICATION_ATOM_XML application/atom+xml
APPLICATION_FORM_URLENCODED application/x-www-form-urlencoded
APPLICATION_OCTET_STREAM application/octet-stream
MULTIPART_FORM_DATA multipart/form-data

Example:

jmeter:
  contentType: APPLICATION_XML

jmeter.httpCodeThreshold

  • Type: integer
  • Default: 500

Sets a limit on HTTP response codes. Whenever a REST call returns an HTTP code equal to or greater than this value, the step is automatically marked as failed without checking any other conditions.

Example:

jmeter:
  httpCodeThreshold: 999

jmeter.timeout

  • Type: integer
  • Default: 60000

Sets a maximum response time (in milliseconds) for subsequent HTTP requests. If this time is exceeded, the request is aborted and an error is raised.

Example:

jmeter:
  timeout: 10000

jmeter.cookies

  • Type: boolean
  • Default: false

jmeter.cache

  • Type: boolean
  • Default: false

jmeter.resources.download

  • Type: boolean
  • Default: false

jmeter.resources.regex

  • Type: regex

jmeter.csv.delimiter

  • Type: string
  • Default: ,

jmeter.csv.encoding

  • Type: charset
  • Default: UTF-8

jmeter.csv.eofStop

  • Type: boolean
  • Default: false

jmeter.csv.random

  • Type: boolean
  • Default: false

jmeter.csv.sharing

  • Type: string
  • Default: ALL_THREADS

Accepted values are:

Name Description
ALL_THREADS All threads in the test plan will share the CSV file, meaning that any thread iteration will consume an entry from it. You can think as having only one pointer to the current line of the CSV, being advanced by any thread iteration. The file is only opened once.
THREAD_GROUP CSV file consumption is only shared within thread groups. This means that threads in separate thread groups will use separate indexes to consume the data. The file is open once per thread group.
THREAD CSV file consumption is isolated per thread. This means that each thread will start consuming the CSV from the beginning and not share any information with other threads. The file is open once per thread.

jmeter.proxy.url

  • Type: url

jmeter.proxy.username

  • Type: string

jmeter.proxy.password

  • Type: string

jmeter.oauth2.url

  • Type: URL

Specifies the OAuth 2.0 authentication service to use to generate the token to be sent in the Authorization HTTP header of REST calls.

Example:

jmeter:
  oauth2:
    url: https://accounts.google.com/o/oauth2/auth

jmeter.oauth2.clientId

  • Type: string

Sets the clientId parameter for the OAuth 2.0 authentication service defined by the value of the jmeter.oauth2.url configuration property.

Example:

jmeter:
  oauth2:
    clientId: WEB_APP

jmeter.oauth2.clientSecret

  • Type: string

Sets the clientSecret parameter for the OAuth 2.0 authentication service defined by the value of the jmeter.oauth2.url configuration property.

Example:

jmeter:
  oauth2:
    clientSecret: ABRACADABRAus1ZMGHvq9R

jmeter.oauth2.cached

  • Type: boolean
  • Default: false

Specifies whether to cache the retrieved token to avoid repeated calls to the oauth service for the same data.

Example:

jmeter:
  oauth2:
    cached: true

jmeter.oauth2.parameters

  • Type: property[]

Sets the default parameters for OAuth authentication.

Example:

jmeter:
  oauth2:
    parameters:
      grant_type: password
      username: pepe
      password: 1234asdf
      scope: something

jmeter.redirect.follow

  • Type: boolean
  • Default: true

Specifies whether to allow redirects in HTTP calls.

Example:

jmeter:
  redirect:
    follow: false

jmeter.report.tree

  • Type: boolean
  • Default: false

jmeter.report.jtl

  • Type: path
  • Default: ./wakamiti.jtl

jmeter.report.html

  • Type: path

jmeter.report.influx.url

  • Type: url

jmeter.report.influx.token

  • Type: string

jmeter.report.influx.title

  • Type: string

jmeter.report.influx.application

  • Type: string

jmeter.report.influx.measurement

  • Type: string

jmeter.report.influx.samplersRegex

  • Type: regex

jmeter.report.influx.tags

  • Type: property[]

jmeter.report.influx.percentiles

  • Type: long[]

jmeter.report.graphite.url

  • Type: url

jmeter.report.graphite.prefix

  • Type: string

Steps

Define base URL

the base URL {url}

Declarative-way for setting the configuration property jmeter.baseURL.

Parameters:

Name Wakamiti type Description
url url required Base URL

Examples:

Given the base URL https://example.org/api

Define content type

{word} as content type

Declarative-way for setting the configuration property jmeter.contentType.

Parameters:

Name Wakamiti type Description
type word required the content type

Examples:

Given APPLICATION_XML as content type

Define timeout

a timeout of {duration}

Sets a response timeout for the subsequent HTTP requests.

Parameters:

Name Wakamiti type Description
duration duration required The timeout

Examples:

Given a timeout of 12000 milliseconds
Given a timeout of 2 seconds

Define HTTP code threshold

(that) any request will be successful if its HTTP code {matcher}

Sets the range of http codes that are valid for all http requests. It's similar to setting the configuration property jmeter.httpCodeTreshold but using any integer assertion.

Parameters:

Name Wakamiti type Description
matcher integer-assertion required Numeric comparator

Example:

* any request will be successful if its HTTP code is greater than 500

Define cookies

(that) cookies are (enabled|disabled)

Enables or disables cookies for all http requests.

Example:

Given that cookies are enabled

Define cache

(that) cache is (enabled|disabled)

Enables or disables cache for all http requests.

Example:

Given that cache is enabled

Define embedded resources download

(that) embedded resources will (not) be downloaded

Enables or disables download of embedded resources on all http requests.

Example:

Given that embedded resources will be downloaded

Define embedded resources download pattern

(that) embedded resources (matching|do not match) the {pattern} pattern are downloaded

Specifies the regular expression of the embedded resources to download or not on all http requests.

Parameters:

Name Wakamiti type Description
pattern regex required A valid regular expression

Example:

Given that embedded resources matching the '.*' pattern are downloaded
Given that embedded resources do not match the '.*' pattern are downloaded

Define proxy

a proxy with the URL {url} (and credentials {username}:{password})

Specifies the URL, with or without credentials, of a proxy server through which HTTP requests are sent to their final destination.

Parameters:

Name Wakamiti type Description
url url required The proxy url
username text The proxy username
password text The proxy password

Example:

Given a proxy with the URL https://proxy.org
Given a proxy with the URL https://proxy.org and credentials 'user1':'s3cr3t'

Define basic authentication

the service uses the basic authentication credentials {username}:{password}

Sets the basic authentication credentials to be sent in the Authorization header for the subsequent requests.

Parameters:

Name Wakamiti type Description
username text required The username
password text required The password

Examples:

Given the service uses the basic authentication credentials 'us1532':'xxxxx'

Define oauth2 authentication

the service uses the oauth authentication

Sets the bearer authentication token to be sent in the Authorization header, which is previously retrieved from the configured oauth2 service (url, clientId, clientSecret, parameters), for the following requests.

Examples:

Given the service uses the oauth authentication

Define oauth2 authentication by token

the service uses the oauth authentication token {token}

Sets the bearer authentication token to be sent in the Authorization header for subsequent requests.

Parameters:

Name Wakamiti type Description
token text required Authentication token

Examples:

Given the service uses the oauth authentication token 'hudytw9834y9cqy32t94'

Define oauth2 authentication by token (file)

the service uses the oauth authentication token from the file {file}

Sets the bearer authentication token to be sent in the Authorization header for subsequent requests, from file.

Parameters:

Name Wakamiti type Description
file file required File with the authentication token

Examples:

Given the service uses the oauth authentication token from the file 'token.txt'

Define oauth2 authentication by credentials

the service uses the oauth authentication credentials {username}:{password}
the service uses the oauth authentication credentials {username}:{password} with the following parameters:
    {table}

Sets the bearer authentication token to be sent in the Authorization header, which is previously retrieved from the configured oauth2 service (url, clientId, clientSecret), using the indicated credentials, for the following requests.

Additional parameters supported by Oauth can also be added using a table.

Parameters:

Name Wakamiti type Description
username text required The username
password text required The password
table table A table with name and value columns

Examples:

Given the service uses the oauth authentication credentials 'us1532':'xxxxx'
Given the service uses the oauth authentication credentials 'us1532':'xxxxx' with the following parameters:
  | name  | value     |
  | scope | something |

Define oauth2 authentication by client

the service uses the oauth authentication
the service uses the oauth authentication with the following parameters:
    {table}

Sets the bearer authentication token to be sent in the Authorization header, which is previously retrieved from the configured oauth2 service (url, clientId, clientSecret), using client data, for the following requests.

Additional parameters supported by Oauth can also be added using a table.

Parameters:

Name Wakamiti type Description
table table A table with name and value columns

Examples:

Given the service uses the oauth authentication
Given the service uses the oauth authentication with the following parameters:
  | name  | value     |
  | scope | something |

Clear authentication

the service does not use authentication

Deletes the authentication header.

Examples:
Given the service does not use authentication

Define dataset

the data in file {file}

Sets the dataset from a CSV file for HTTP requests.

By default, the CSV file will be opened once and shared by all threads. This means that when one thread reads a CSV line in one iteration, then the following thread reading a line will continue with the following line.

If you want to change this (to share the file per thread group or use one file per thread), then you can use the jmeter.csv.sharing property.

Check csv properties for additional details and options (like changing delimiter, stopping on the end of file, etc.).

Parameters:

Name Wakamiti type Description
file file required A csv file

Examples:

Given the data in file 'data/users.csv'

Define variables

variable {name} with value {value}

Sets a single variable for HTTP requests.

Parameters:

Name Wakamiti type Description
name text required The var name
value text required The var value

Examples:

Given variable 'something' with value 'abc'
And a GET call to the service '/users/{something}'

Define variables (table)

the following variables:
    {table}

Sets multiple variables for HTTP requests.

Parameters:

Name Wakamiti type Description
table table required A table with name and value columns

Examples:

Given the following variables:
  | Name | Value    |
  | id   | 13       |
  | city | Valencia |
And a GET call to the service '/users/{id}?city={city}'

Define request

a {method} call to the service {service}

Defines a HTTP request to a service. The remaining parts of the call are defined in subsequent steps until another REST call is defined.

Multiple calls can be defined in a scenario.

Parameters:

Name Wakamiti type Description
method word required The call method (GET, PUT, POST...)
service text required The service url

Examples:

Given a GET call to the service '/users'

Define request body

with the following data:
    {data}

Defines the payload body of the current HTTP request.

Parameters:

Name Wakamiti type Description
data document required The request payload body

Examples:

Given a POST call to the service '/users'
* with the following data:
  """json
  {
    "firstName": "John",
    "lastName": "Doe",
    "birthDate": "1980-02-20",
    "address": "221B, Baker Street"
  }
  """

Define request body (file)

with the data from the file {file}

Defines the payload body of the current HTTP request. The payload is provided by the given file.

Parameters:

Name Wakamiti type Description
file file required A file containing the request payload body

Examples:

Given a POST call to the service '/users'
* with the data from the file 'data/user123.json'

Define request parameters or headers

with the (parameter|header|form parameter) {name} with value {value}

Defines a header, parameter or form parameter of the current HTTP request.

Parameters:

Name Wakamiti type Description
name text required The parameter name
value text required The parameter value

Examples:

Given a GET call to the service '/users'
* with the parameter 'id' with value '13'
Given a GET call to the service '/users'
* with the form parameter 'id' with value '13'
Given a GET call to the service '/users'
* with the header 'Keep-Alive' with value '1200'

Define request parameters (table)

with the following (parameters|headers|form parameters):
    {table}

Defines multiple headers, parameters or form parameters of the current HTTP request.

Parameters:

Name Wakamiti type Description
table table required A table with name and value columns

Examples:

Given a GET call to the service '/users'
* with the following parameters:
  | Name | Value    |
  | id   | 13       |
  | city | Valencia |
Given a GET call to the service '/users'
* with the following form parameters:
  | Name | Value    |
  | id   | 13       |
  | city | Valencia |
Given a GET call to the service '/users'
* with the following headers:
  | Name       | Value    |
  | Age        | 3600     |
  | Keep-Alive | 1200     |

Define request attached file

with the attached file {file} named {name}

Defines a file attachment in the current request.

Parameters:

Name Wakamiti type Description
file file required File to be attach

Examples:

Given a POST call to the service '/users'
* with the attached file 'data/data.txt' named 'file'

Define request extractor

with the regular expression {regex} extracted in the variable {name}
with json value {query} extracted in the variable {name}
with the fragment between {leftBoundary} and {rightBoundary} extracted in the variable {name}

Defines a data extractor of the current request response. This extractor can be from a regular expression, a json path or defined boundaries.

Parameters:

Name Wakamiti type Description
regex text The regular expression
query text The json path
leftBoundary text The left boundary
rightBoundary text The right boundary
name text required The name of the variable extracted

Examples:

Given a GET call to the service '/users'
* with the regular expression '"id":\s*"([^"]+)"' extracted in the variable 'id'
And a GET call to the service '/users/{id}'
Given a GET call to the service '/users'
* with json value '[0].id' extracted in the variable 'id'
And a GET call to the service '/users/{id}'
Given a GET call to the service '/users'
* with the fragment between '"id":"' and '"' extracted in the variable 'id'
And a GET call to the service '/users/{id}'

Execute simple

{threads} thread(s) (is|are) executed

Executes a thread group the specified number of times.

Parameters:

Name Wakamiti type Description
threads int required Number of times to launch

Examples:

Given a GET call to the service '/users'
When 1 thread is executed

Execute load

{threads} thread(s) (is|are) executed in {ramp} holding {hold}

Executes a thread group for the specified number of threads, ramp-up time and hold time.

Parameters:

Name Wakamiti type Description
threads int required Number of times to launch
ramp duration required
hold duration required

Examples:

Given a GET call to the service '/users'
When 10 threads are executed in 10 seconds holding 30 seconds

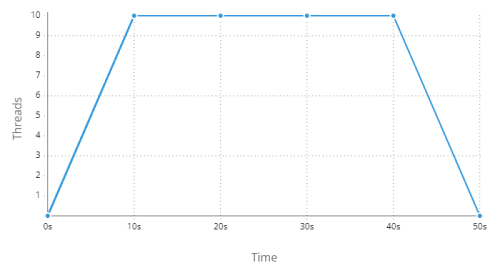

This produces the following scenario:

load scenario

Execute load (iterations)

{threads} thread(s) (is|are) executed in {ramp} {iterations} time(s)

Executes a thread group for the specified number of threads, ramp-up, for the specified number of times.

Parameters:

Name Wakamiti type Description
threads int required Number of times to launch
ramp duration required
iterations int required

Examples:

Given a GET call to the service '/users'
When 10 threads are executed in 10 seconds 3 times

This produces the following scenario:

load scenario

Execute load (increase)

{threads} thread(s) (is|are) executed in {ramp} every {hold} {iterations} time(s)

Executes a thread group for the specified number of threads, ramping up, increasing threads every specified time for a specified number of times.

Parameters:

Name Wakamiti type Description
threads int required Number of times to launch
ramp duration required
hold duration required
iterations int required

Examples:

Given a GET call to the service '/users'
When 10 threads are executed in 10 seconds every 10 seconds 3 times

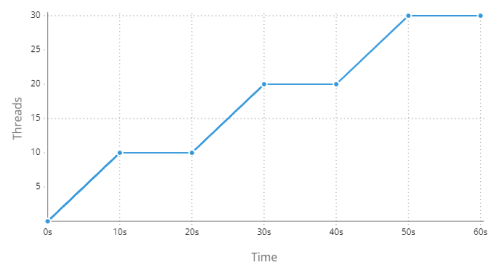

This produces the following scenario:

load scenario

Execute load (stretches)

a test is executed with the following stretches:
  {table}

Executes a thread group for the specified stretches, including: 1. the number of threads 2. The ramp duration 3. The hold duration

Parameters:

Name Wakamiti type Description
table table required Stretches

Examples:

Given a GET call to the service '/users'
When a test is executed with the following stretches:
  | threads | ramp       | hold       |
  | 10      | 10 seconds | 0 seconds  |
  | 5       | 10 seconds | 10 seconds |
  | 20      | 10 seconds | 0 seconds  |
  | 0       | 20 seconds | 0 seconds  |

This produces the following scenario:

load scenario

Check metric

the {metric} {matcher}

Validates that a result metric matches the specified matcher.

Parameters:

Name Wakamiti type Description
metric *-metric required The result metric
matcher *-assertion required Comparator

*: duration, long o double.

Examples:

Then the 99th percentile is less than 3 seconds
Then the number of errors is less than 10
Then the number of samples per second is greater than 5.5

Data types

duration-metric

Accepted values are:

  • minimum duration
  • maximum duration
  • average duration
  • median
  • 90th percentile
  • 95th percentile
  • 99th percentile

long-metric

Accepted values are:

  • number of samples
  • number of errors
  • number of bytes received
  • number of bytes sent

double-metric

Accepted values are:

  • number of samples per second
  • number of errors per second
  • number of bytes received per second
  • number of bytes sent per second
